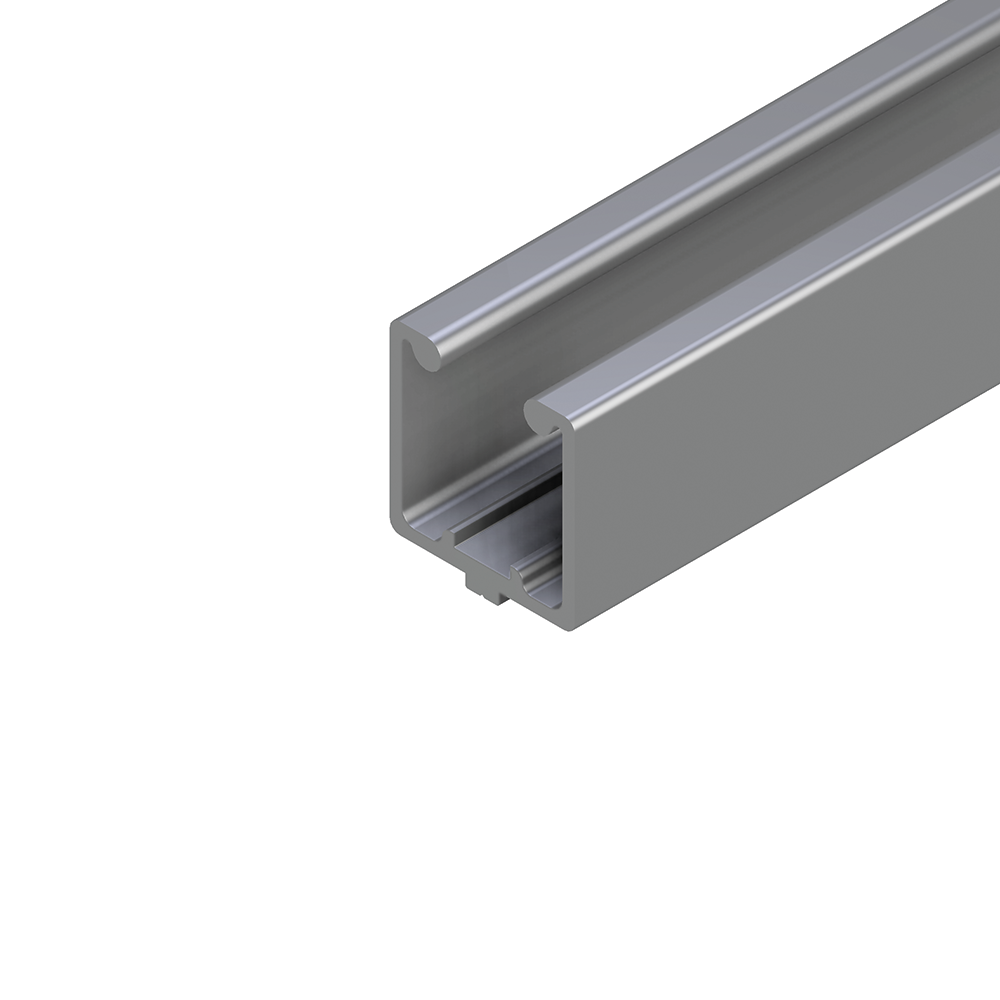

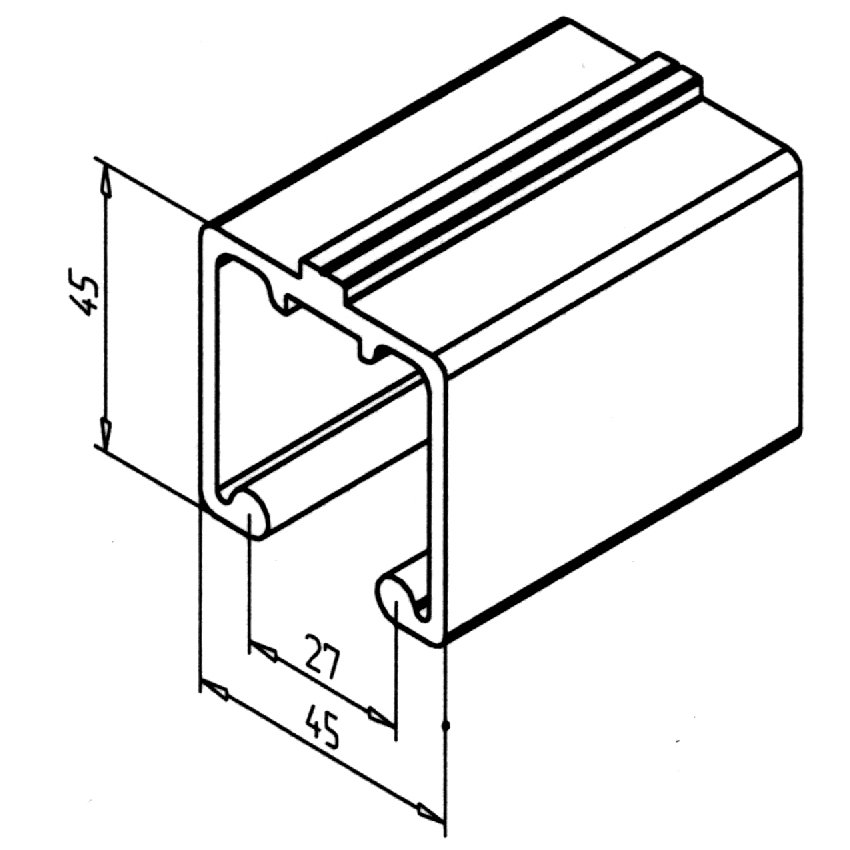

Sliding door profile
Article Nr. 20.1038/0
Production length 6m (price advantage for packing unit)
6m (piece)
48m (packing unit)
8x6m
48m (packing unit)
cut in half
16x3m
Configure cutting (up to 6m)
Length L (10 - 6000)
mm
m
Quantity
Comment
Add to inquiries
Questions about the product / Contact
Calculate deflection
CAD Download
Generate datasheet
3D View
Techn. Data / Items supplied
Applications
Assembly
Aluminium, extruded, anodized E6/EV1
I
x
= 15.347 cm
4
I
y
= 15.597 cm
4
w
x
= 5.912 cm
3
w
y
= 6.932 cm
3
IT = 0.726 cm
4
Weight = 1.470 kg/m
Bar length = 6 m
Packing unit = 48 m
